How to Install the Stand of NearHub Board S65 & S75

If you’re not sure how to install the stand, here is the installation introduction for you.

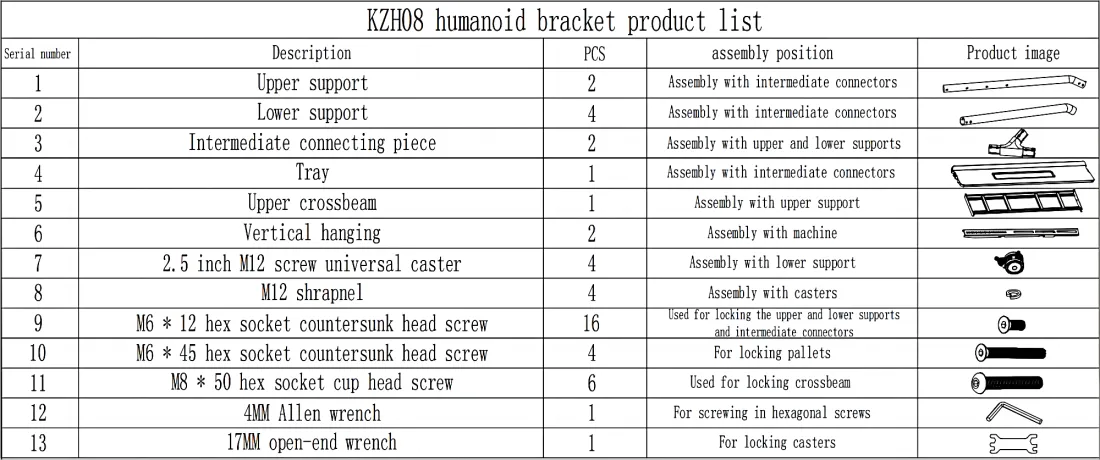

Step 1

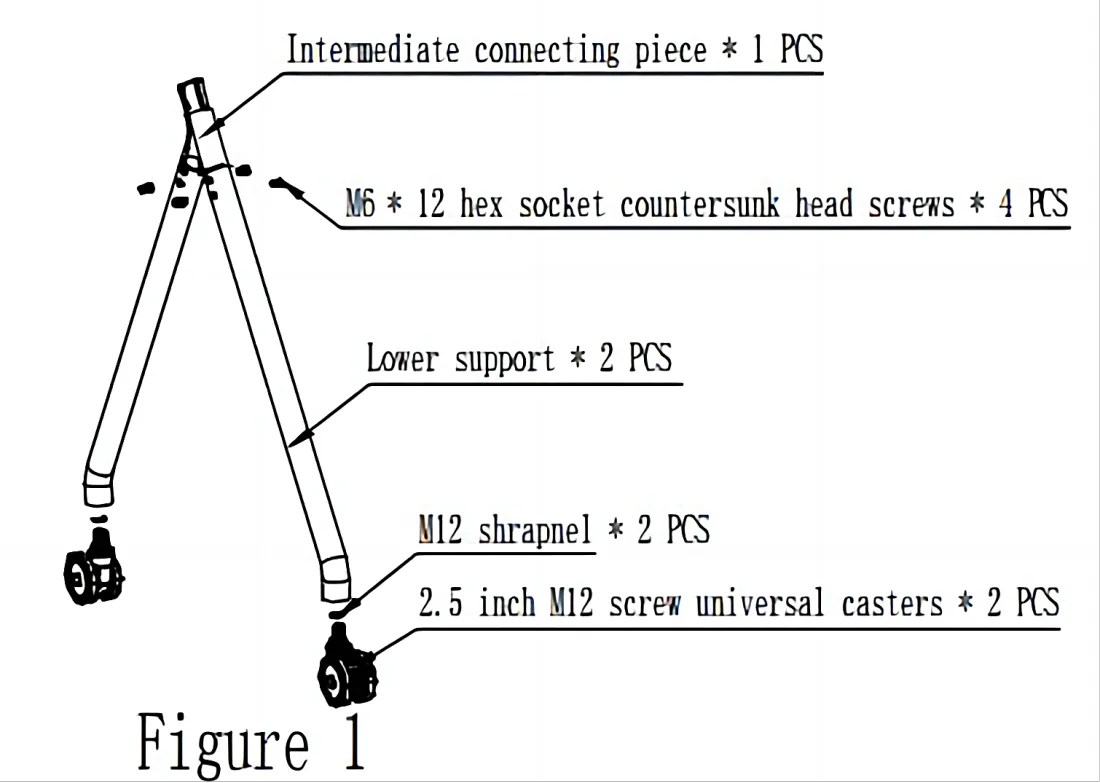

① Install the corresponding products into the state shown in Figure 1, totaling 2 pieces.

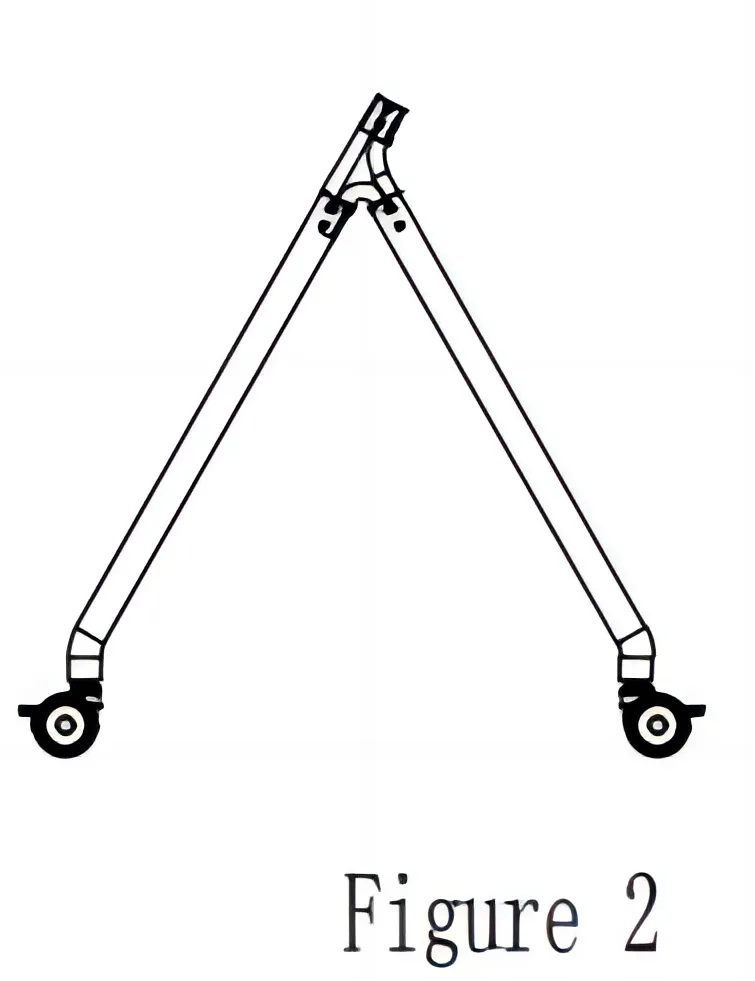

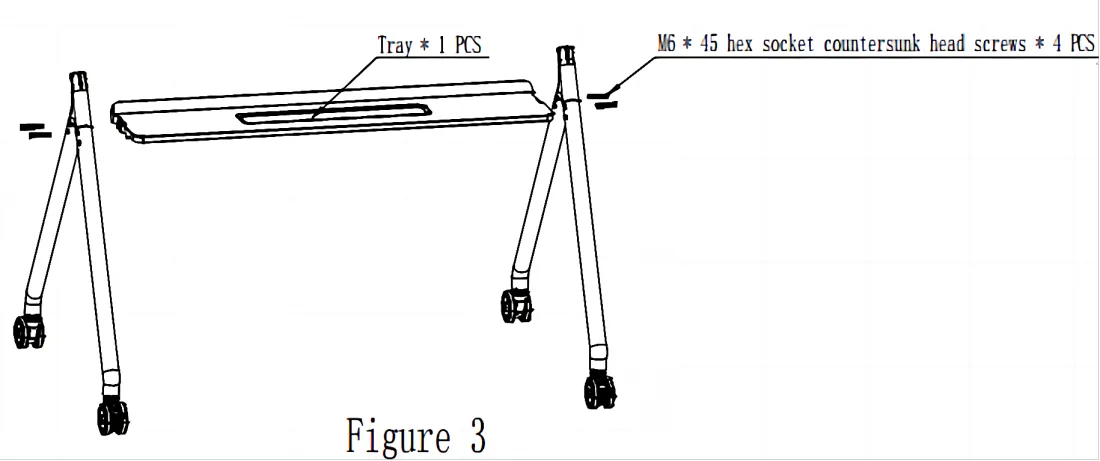

② After the installation is completed in Figure 2, take out the tray and lock it with screws left and right as shown in Figure 3.

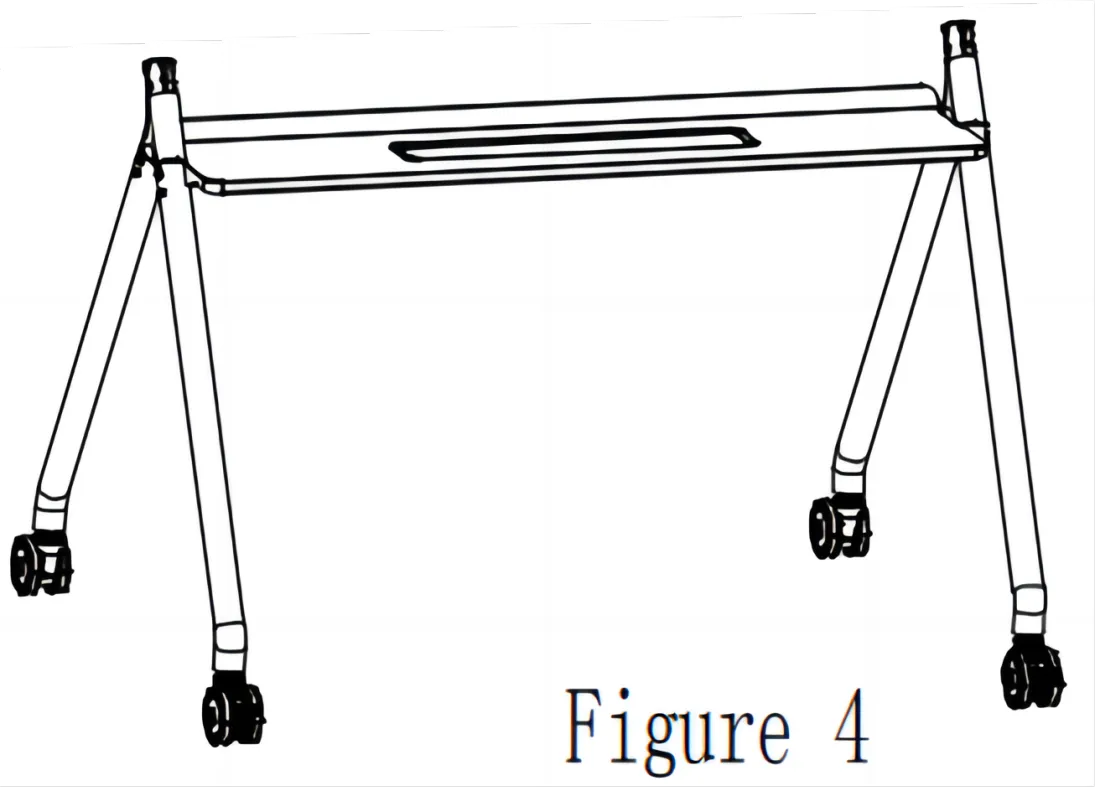

③ The lower half of the bracket is installed as shown in Figure 4.

Step 2

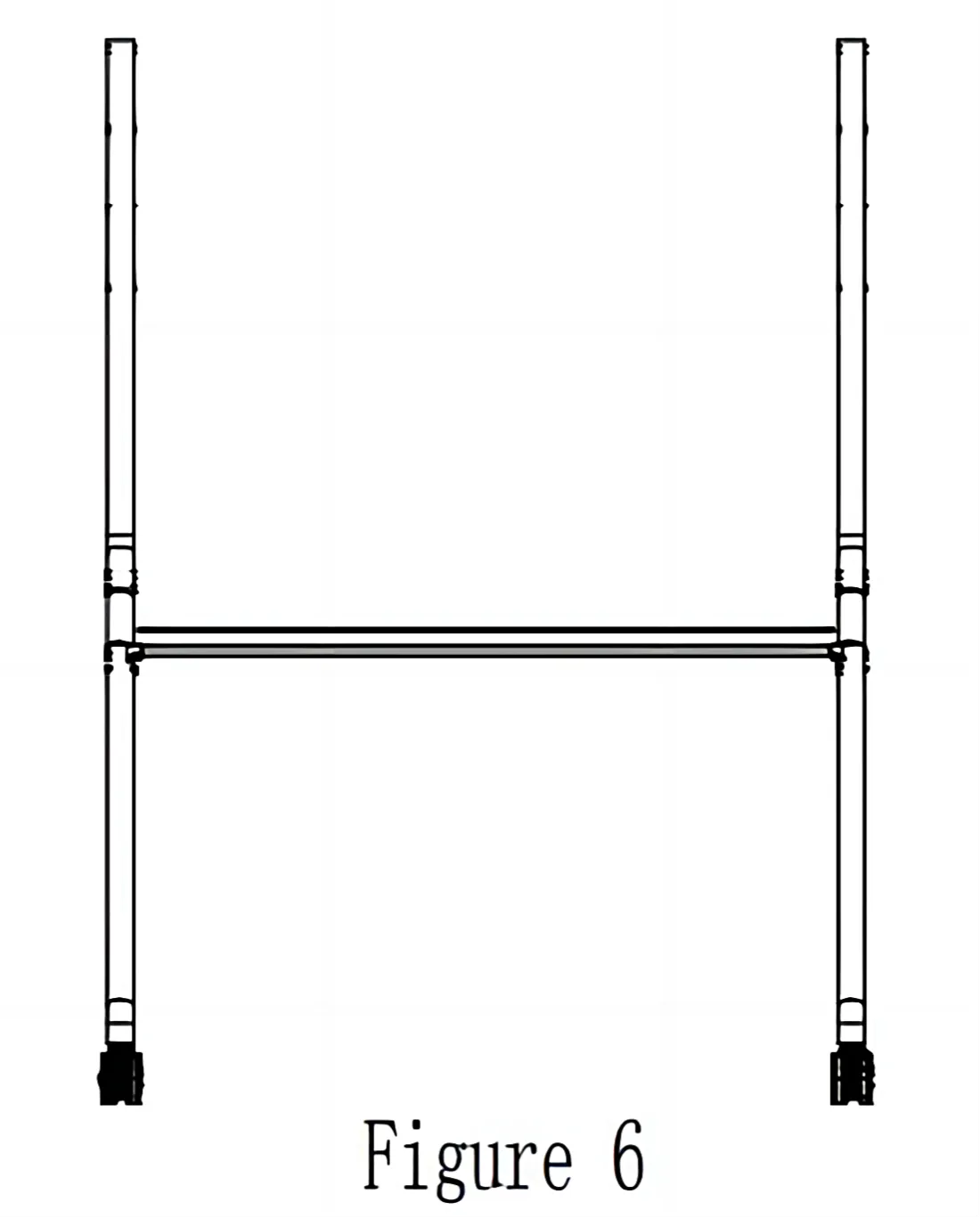

④ Insert the upper support into the middle connecting piece as shown in Figure 5 and lock it with M6 * 12 screws to complete the state shown in Figure 6.

⑤ Take out the upper crossbeam and lock it with three M8 screws on the left and right sides as shown in Figure 7.

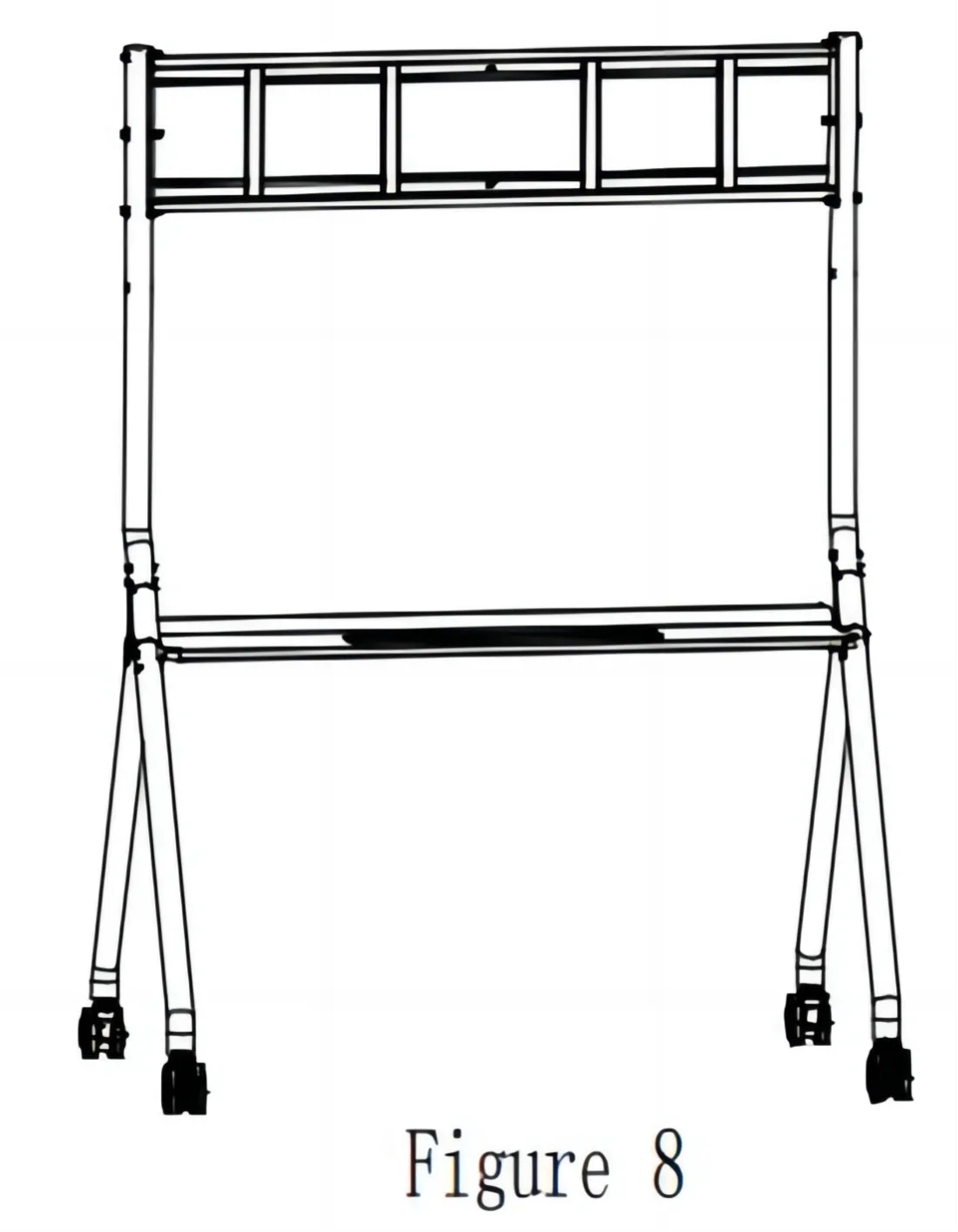

⑥ The bracket installation is completed as shown in Figure 8.

Step 3

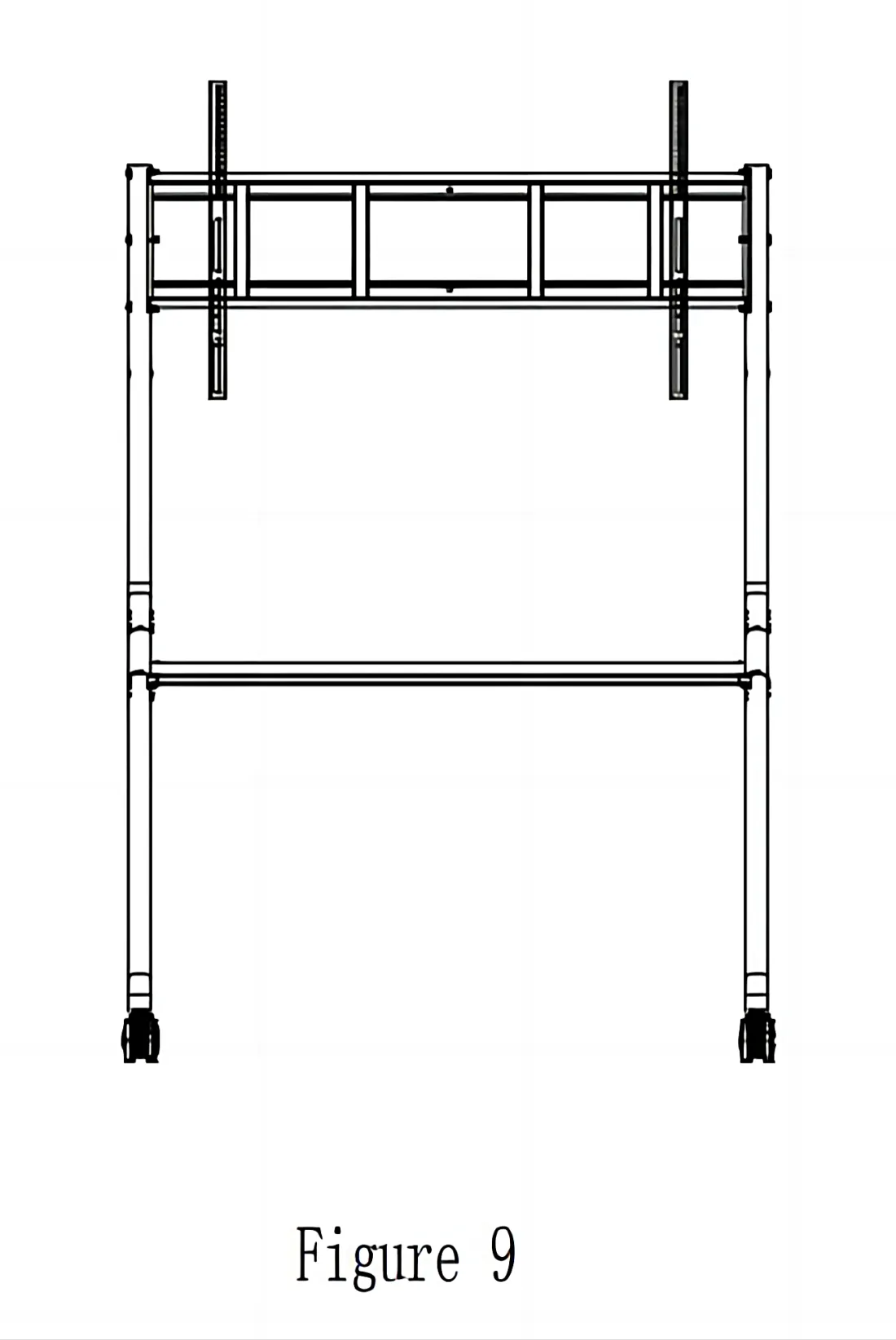

⑦ Take out the standard vertical beam from the packaging box, install the vertical beam on the machine and fix it with M8 * 25 screws (please adjust the upper and lower positions according to personal needs)The schematic diagram is shown in Figure 9.

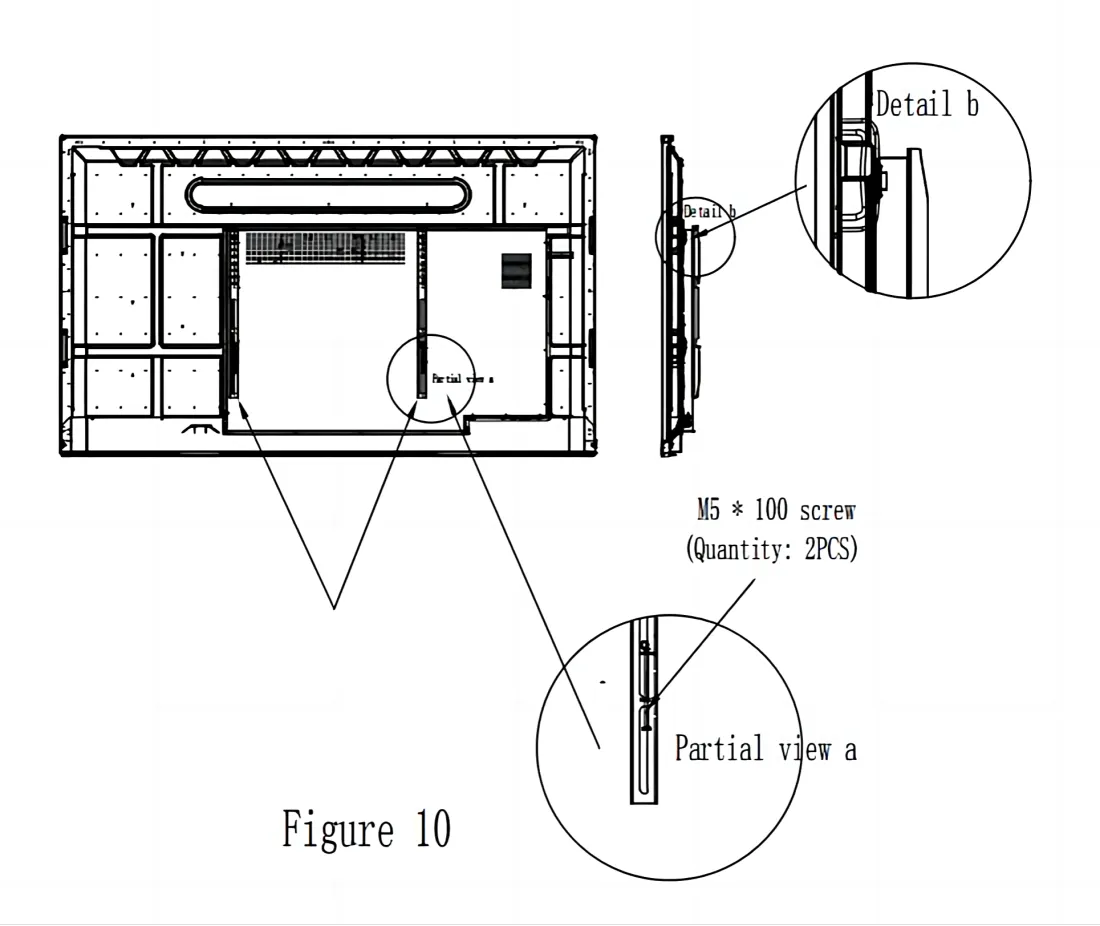

⑧ After fixing the vertical beam, lift the machine and hang it onto the assembled bracket. Adjust the machine to the center position as shown in part Detail b of Figure 10. Tighten the M5 * 100 screw to the top and hang it horizontally, and the installation is complete.

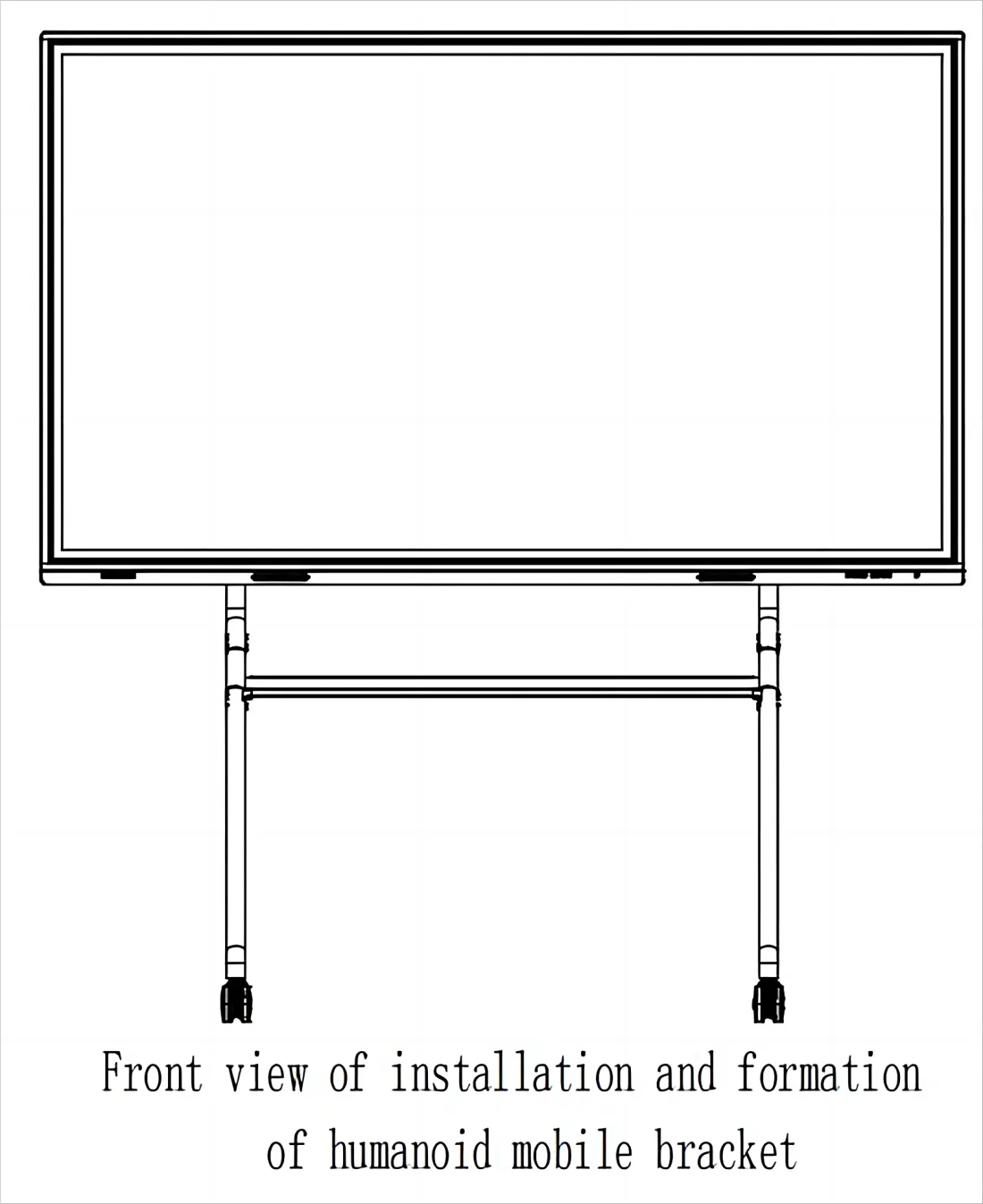

This is the final presentation.

Be careful

1. In order to guide the installation of this mobile cart correctly, please read the manual carefully during installation;
2. If there are any unclear points when reading or using this manual, please contact our company.
3. The illustrations in this manual are for reference only, please refer to the actual product.

---

If you meet any problems in the process or have any further questions, please submit a support ticket here. Our support team will respond as soon as possible.
